OPEN SYS Scanning Probe Microscope
Full Open SPM Platform

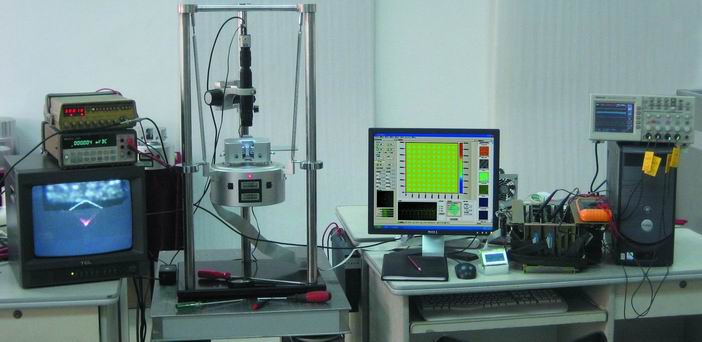

* The picture is for reference only, the actual item may differ due to possible alteration.

    OpenSys SPM system is known for its multifunction and full openness. OpenSys system is more a platform for unconventional experiments or further second developments than a routine detecting facility.

  OpenSys SPM

Milti-function: STM, AFM, LFM, MFM, EFM, Contact Mode, Tapping, Phase Imaging included

Full digital control

16bit ADC/DAC

Single external trigger and high speed cache

High speed communication based on TCP/IP protocol for double-CPU-double-OS and large data-exchange

Input/output signal channel preserved for further system extension

Standard external open interface for second developments

I-V Curve and Force-Curve

Nano-Processing

Nano-manipulating with Super-Multimedia technology

Designed for Windows Vista/XP/NT/2000/9X

Hardcode and Dynamic Code both applied to offline software

Brightness and contrast auto refreshed

Multi-Analysis: Granularity and Roughness


  Specifications

Resolution:
AFM: 0.26nm lateral, 0.1nm vertical
STM: 0.13nm lateral, 0.01nm vertical

Current Sensitivity: ≤10pA

Force Sensitivity: ≤1nN

Positioning Accuracy: ≤0.5nm

Output channels preserved: 6ch (1ch±200V,5ch±10V, 16-bit DAC)

Input channels preserved: 16ch (100k/16-bit ADC with Low-pass filter and amplifier)

DI/DO channels preserved: 8ch DI, 8ch DO


  Standard and optional

Milti-function: STM, AFM, LFM, MFM, EFM, Contact Mode, Tapping, Phase Imaging included

Online software and offline software

1μm × 1μm Scanner

20μm × 20μm Scanner

50μm × 50μm Scanner (optional)

70μm × 70μm Scanner (optional)

100μm×100μm Scanner (optional)

Optical microscope system (optional)

Second monitor (optional)
